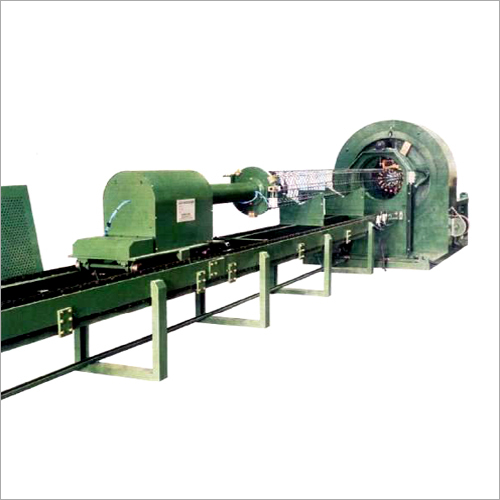

Cage Welding Machine

Cage Welding Machine
Cage Welding Machine
Product Code : THT-04
Brand Name : THT INTERNATIONAL CO., LTD.
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

Outfitted with a modern infrastructure, we are the most prominent manufacturer and exporter of a wide array of Automatic Pile Cage Welding Machine. This is used for steel cages of prestressed spun concrete pile. This machine completes with height adjustable cage support and motor-driven tailstock with Automatic control panel. In addition to this, the provided Automatic Pile Cage Welding Machine can be purchased by our precious clients at marginal rates and given time frame.



Automatic Pile Cage Welding Machine

Automatic Pile Cage Welding Machine for use ULBON(weldable PC Bar) for steel Cages of Prestressed Spun Concrete Pile. Steel cage welding and forming will Performed by and revolving electrode to weld circumferential wires onto longitudinal Bars. Buttonheaded individual bar will be pushed into bar guide manually. The machine, complete with height adjustable cage support and motor-driven tailstock with Automatic control panel.

Model : HSCG-100
Caging Range : 300mm dia. ~ 600mm dia. X 10m ~ 20m. max.
Longitudinal Bars : 8 ~ 20 bars x 7mm dia. ~ 13mm dia.
Spiral Wires : 3.2mm dia. ~ 4mm dia.
Electrode RPM. : 5 ~ 60 rpm. (working rpm)
Welding Power : 100KVA, water cooled power transformer w/SCR control.
Drive Motor :  3.7 KW x 4P motor for Main Drum with Inverter Control
                     3.7 KW x 4P motor for Tailstock
                     2.2 KW AC motor for Spiral Wire Spool with Inverter Control
Cage Support : Pneumatically operated air cylinder with height adjustable Cage support in every two meter apart.
Controller : Automatic PLC control panel with 3 Inverter controls for Maindrum, Tailstock and Spiral Wire Spool control.
Electricity : 380VAC, 50Hz. 3 Phase for motors. 220VAC, 50Hz. 1 Phase for control panel.
Note : Enduser is requested to provide Cooling water with water tank and Compressed Air, and Main Power up to the control panel.
Accessories :Chucking Devices for Class A, B, & C respectively.
PCD : PCD for each size of pile based on class A, B, C should be informed to Supplier when ordering.
